TK2 Series Roller
Versatile TK2 series conveyor roller — available in belt widths from 400 BW to 1200 BW.
RKM-RS steel rollers are suited for the harshest mining conditions. With its optimum sealing package and quality components, the RS roller is one of our best sellers — supplied to projects around the world.

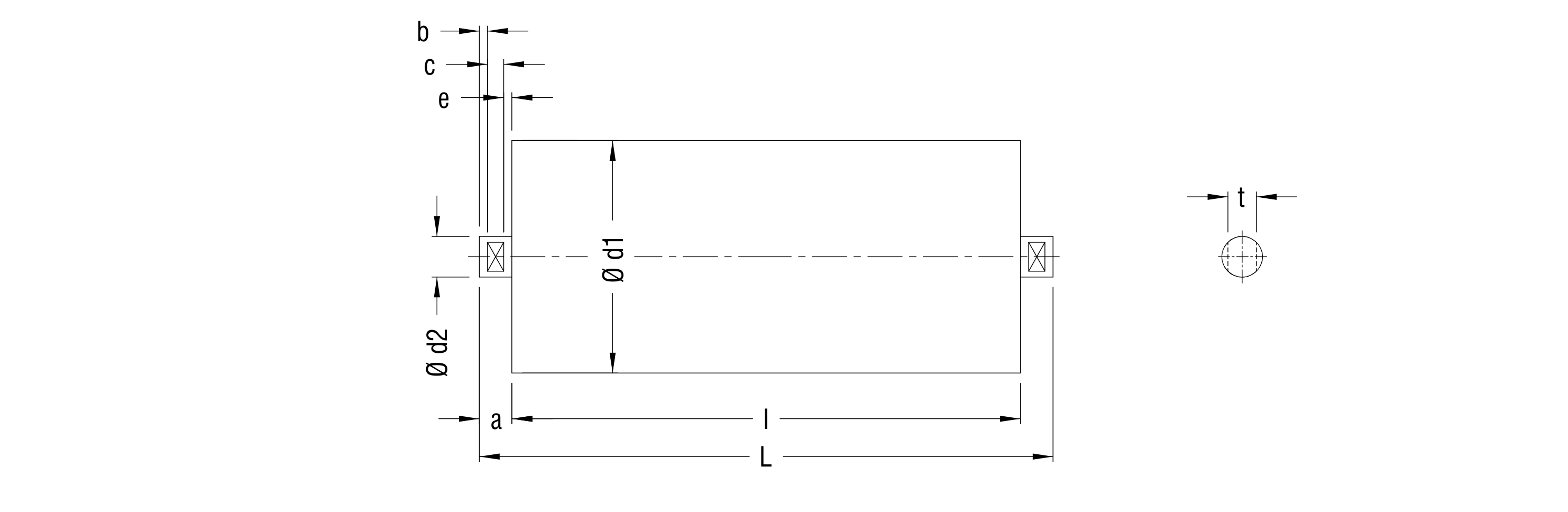

Standard carrier (carry-side) roller sizes. All dimensions in mm; weight in kg.
| Model | Belt width | Ø d1 | I | L | a | b | c | e | Ø d2 | t | Bearing | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RKM 45-CR | 450 | 89 | 165 | 197 | 16 | 4 | 8 | 4 | 20 | 14 | 6204 | 2.15 |
| RKM 50-CR | 500 | 89 | 180 | 212 | 16 | 4 | 8 | 4 | 20 | 14 | 6204 | 2.36 |
| RKM 60-CR | 600 | 89 | 210 | 242 | 16 | 4 | 8 | 4 | 20 | 14 | 6204 | 2.55 |
| RKM 75-CR | 750 | 114 | 265 | 297 | 16 | 4 | 8 | 4 | 20 | 14 | 6204 | 4.00 |
| RKM 90-CR | 900 | 114 | 315 | 347 | 16 | 4 | 8 | 4 | 20 | 14 | 6204 | 4.75 |
| RKM 105-CR | 1050 | 139 | 370 | 410 | 20 | 4 | 11 | 5 | 25 | 18 | 6205 | 7.65 |
| RKM 120-CR | 1200 | 139 | 420 | 460 | 20 | 4 | 11 | 5 | 25 | 18 | 6205 | 8.40 |
We reserve the right to alter design or specifications. Other sizes available on request.

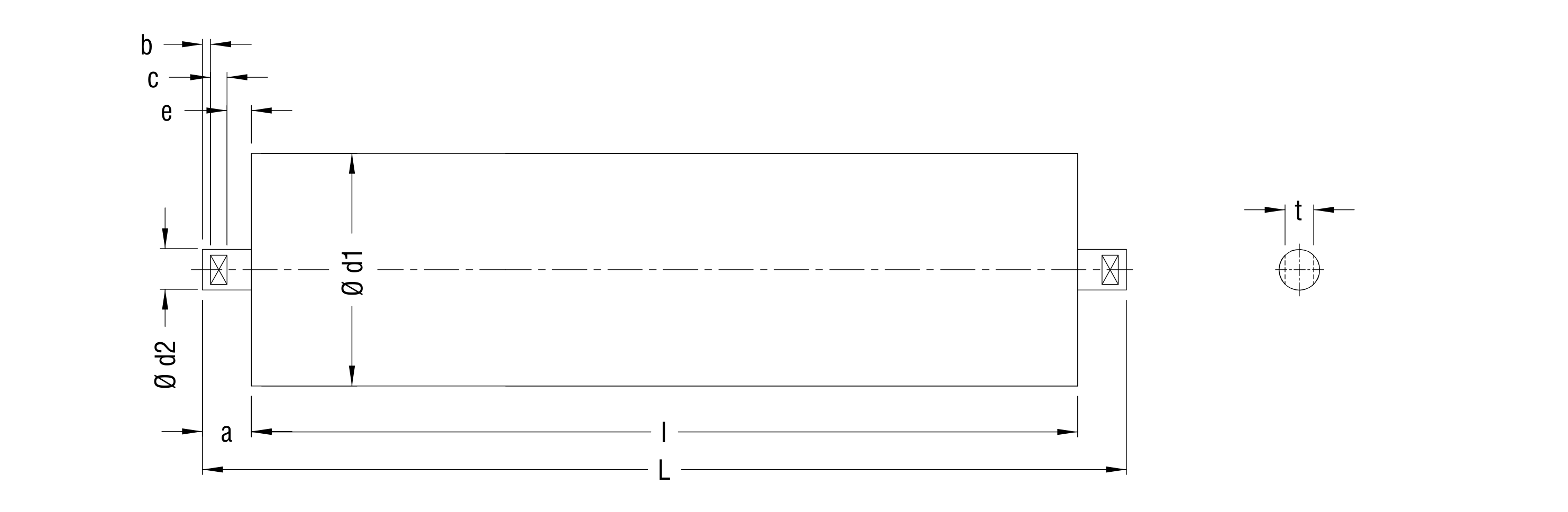

Standard return-side roller sizes. All dimensions in mm; weight in kg.
| Model | Belt width | Ø d1 | I | L | a | b | c | e | Ø d2 | t | Bearing | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RKM 45-RR | 450 | 89 | 510 | 554 | 22 | 4 | 8 | 10 | 20 | 14 | 6204 | 5.20 |
| RKM 50-RR | 500 | 89 | 560 | 604 | 22 | 4 | 8 | 10 | 20 | 14 | 6204 | 5.90 |
| RKM 60-RR | 600 | 89 | 660 | 704 | 22 | 4 | 8 | 10 | 20 | 14 | 6204 | 6.70 |
| RKM 75-RR | 750 | 114 | 850 | 904 | 27 | 4 | 8 | 15 | 20 | 14 | 6204 | 11.00 |
| RKM 90-RR | 900 | 114 | 1000 | 1054 | 27 | 4 | 8 | 15 | 20 | 14 | 6204 | 13.00 |
| RKM 105-RR | 1050 | 139 | 1150 | 1214 | 32 | 6 | 11 | 15 | 25 | 18 | 6205 | 20.45 |
| RKM 120-RR | 1200 | 139 | 1300 | 1364 | 32 | 6 | 11 | 15 | 25 | 18 | 6205 | 23.85 |
We reserve the right to alter design or specifications. Other sizes available on request.
Versatile TK2 series conveyor roller — available in belt widths from 400 BW to 1200 BW.
RS steel core fitted with rubber or hot-bonded TPU impact rings for material drop zones.
Thick-walled tube, S45C shaft, spherical bearings. For sections up to 13,000 tph at 3–4 m/s.
